Guard tour systems: how they work and how to choose one

01

What a guard tour system is

A guard tour system, also called a guard tour patrol system or guard patrol system, is a way of recording that a security guard (often called a security officer) visited set points on a patrol at set times. Each checkpoint on the route carries something the guard must interact with – a metal touch button, a proximity tag, an NFC tag, a QR code or a beacon – and each interaction is logged with the time and, usually, the guard's identity. The result is a patrol log that shows which checkpoints were reached, in what order and when, and which were missed.

The idea is old. For more than a century, night watchmen carried a mechanical watchman's clock and turned a key fixed at each station, which marked a paper tape or dial inside the clock. Electronic systems replaced the clock with a data collector, and more recently with software on a mobile phone, but the question they answer has not changed: did the patrol happen as planned?

No federal law requires a guard tour system. Patrol routes, frequencies and what to check at each point come from the contract and the site's post orders. The states regulate the guards themselves rather than the tools they carry. In California, for example, the Bureau of Security and Investigative Services registers guards (the registration usually called a guard card), and the BSIS security guard fact sheet says a guard must carry a valid, current registration card while on duty. A guard tour system is simply the most common way a security company gives a client verification that the patrols in the post orders were carried out.

02

The main types of guard tour system

Most guard patrol systems on the market fall into a few families, some standalone and some built into wider security or workforce management software for companies running multiple sites. Each has its place.

• Touch-button wands: the guard carries a rugged handheld reader, sometimes called a wand or baton, and touches it against a metal button fixed at each checkpoint. The reader stores the data, which is uploaded later through a dock or USB cable. Wands are simple, very durable and work anywhere, including where there is no cell signal, but the record is only seen after the upload.
• RFID proximity readers: the same principle with contactless tags, so the guard holds the reader near the tag instead of touching it. Some models upload over a cellular network for near real-time patrol monitoring; others store the data until they are docked.
• Smartphone apps with NFC, QR codes or beacons: the guard scans a QR code, taps an NFC tag or passes a Bluetooth beacon with a phone running guard tour software. The record usually arrives straight away, and the app can add incident reporting, photos, notes and checklists. Many also use GPS to track the phone's location, particularly for mobile patrols that drive between sites.
• Fixed or online systems: checkpoints wired into the building's access control or a dedicated network, where the guard presents a card at each station and the control room sees each one as it happens. They suit large, permanent sites with an existing security system to integrate with.
• Combined devices: some dedicated handsets add lone-worker features such as an SOS button, man-down or no-movement alerts. That makes them lone-worker devices as well as patrol recorders, which is a different category of product, chosen on different grounds.

03

What a guard tour system should record and report

Whatever the hardware, the useful output is the same. A good system, and the tour management software behind it, lets you:

• Define tours: the checkpoints on each route, the order if it matters, and the times or frequency of each patrol, matching the post orders.
• Record each checkpoint with the time and the guard assigned to the tour, not just the device.
• Show missed checkpoints and late or incomplete tours clearly, instead of leaving them to be spotted in a long list.
• Capture what was found: a note, a photo, a maintenance issue or an incident at the checkpoint where it was seen.
• Raise alerts to a supervisor or dispatch when a patrol is overdue, if the site needs that level of patrol monitoring.
• Report to the client or facility manager in a form they will read: patrols completed against those scheduled, exceptions, and what was done about them, alongside the daily activity report.
• Keep the patrol data for as long as the contract requires, and no longer than needed where it identifies individuals.

The last points matter more than they seem. A client who asks whether a guard actually patrolled the loading dock last night should get an answer in seconds, not after someone downloads a wand and compiles a report by hand.

04

Questions to ask before choosing one

Comparisons of guard tour software tend to list features, and a vendor demo shows the best of them. The questions that decide whether a system works for your security teams and your sites are more practical:

1. What does the environment demand? Weather, dust, water, heat and cold, hazardous locations, and how much abuse the device and the checkpoints will take.
2. Is there signal everywhere on the route? Basements, mechanical rooms, parking structures and large steel buildings often have none. The system needs to work offline and upload later without losing records.
3. Whose device? A company phone, a dedicated wand, or the guard's own phone. Each has cost, battery, security and policy consequences.
4. Real time or after the shift? Real time costs more to run but lets a supervisor act on a missed patrol while it still matters. For some sites a next-morning report is enough.
5. How are checkpoints fixed? Tags and codes need to be tamper-resistant and placed where they can only be scanned by being there: a tag by the door it shows was checked, not one on the guard booth wall.
6. Do guards work alone? Whatever else applies, the General Duty Clause, Section 5(a)(1) of the OSH Act, requires every employer to furnish a place of employment "free from recognized hazards that are causing or are likely to cause death or serious physical harm." A patrol recorder is not a lone-worker alarm. If you need one, choose it on its own merits.
7. What about location tracking? GPS tracking of employees is regulated differently from state to state. Take advice where you operate, tell guards what is tracked and why, and keep it proportionate to the job.
8. How will the client see the results? A portal nobody logs into is not client reporting.
9. What does it cost over the contract? Hardware, per-device or per-user subscriptions, tags, replacements, and the time spent compiling reports.

05

Making patrol records mean something

A guard tour system shows that someone was at a checkpoint at a time. It does not show that they looked properly, tried the door or noticed the smell of smoke. The system is only as good as the patrol design and the supervision around it.

• Put checkpoints where the risk is: fire exits, perimeter gates, mechanical rooms, storerooms, the far corner of the parking lot – the places that would otherwise be skipped.
• Vary the timing within the post orders, so patrols are not predictable to anyone watching.
• Attach a check to each point, such as door secure, lights working, no water on the floor, so the scan records a task and not just a presence.
• Read the data: the security supervisor should review missed and late checkpoints every day and ask why.
• Act on what is found: maintenance issues reported on patrol need to reach the people who fix them.
• Keep supervising: unannounced site visits remain the best check that patrols are done well, not just done.

Patrol records also answer the fire watch question. Under section 901.7 of the International Fire Code, a fire code official can require a fire watch when a fire protection system is out of service, and local rules are often stricter: the Seattle Fire Department's Client Assistance Memo 5991, Fire Watch and Out of Service Fire Protection Systems says "A fire watch is required whenever a fire protection system is out of service," unless an exemption applies. A fire watch is a patrol with a log, and a record of each round, with the time and the person, is exactly what the fire marshal will ask to see. The fire watch guide covers the rules in detail.

06

Where patrol records fail, and where SiteClara fits

Without a system, patrols are recorded as a line in the daily activity report: "patrol completed, all secure." With a wand, the record exists but may not be seen until the end of the week. Either way, a maintenance issue found at 2 a.m. often stays in the report instead of reaching facilities, and a client who asks what happened last night gets a compiled report days later.

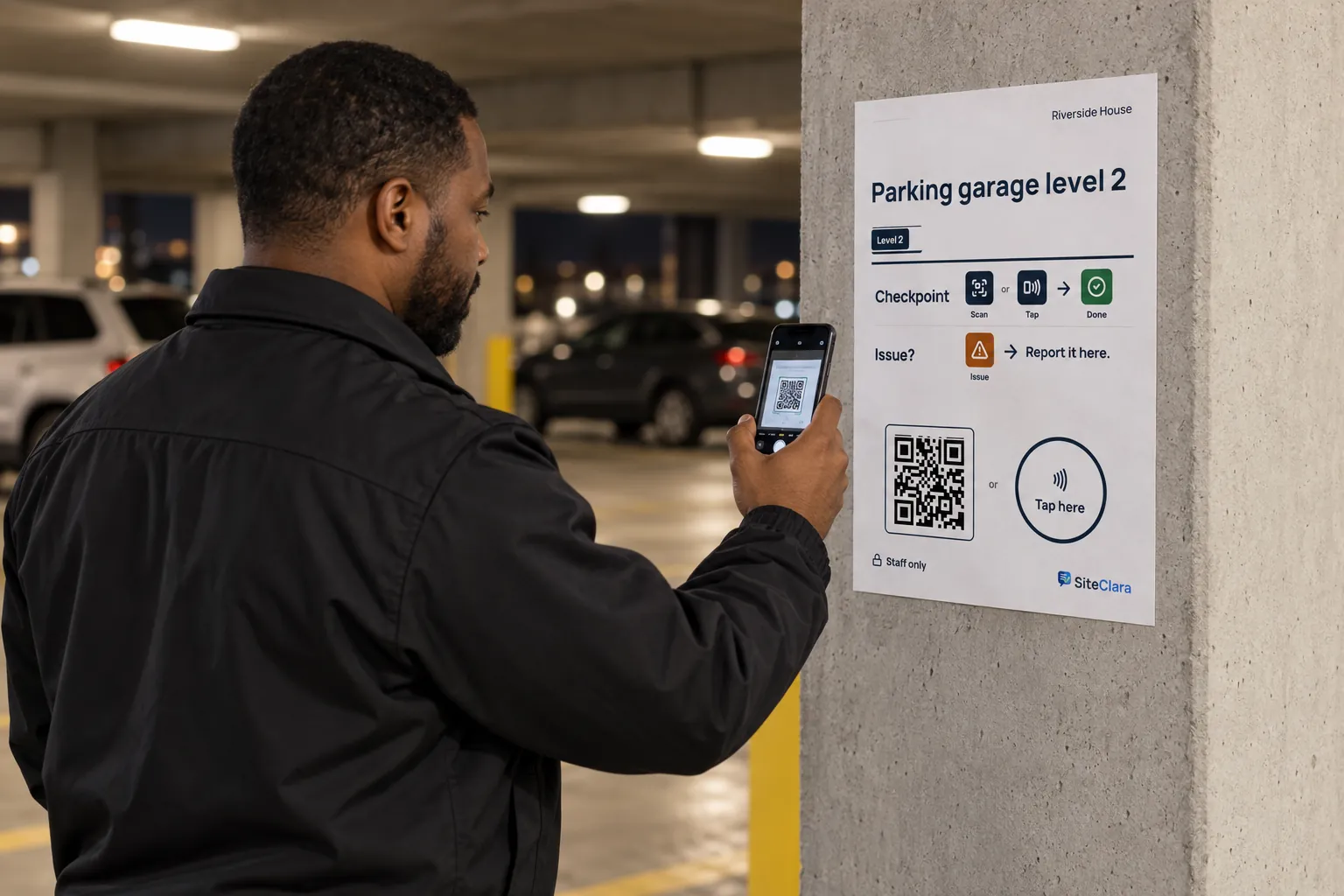

SiteClara is a phone-based way to record that a checkpoint was reached and when. A printed QR poster, with an optional NFC tag behind it, goes at each checkpoint. The guard scans the code or taps the tag on their own phone, with no app to install – guards are enrolled by text message and sign in with a link. At the checkpoint they see the checks due there and mark them done, or explain what stopped them, and can report an issue or incident with a photo. A reported issue goes onto the team's list of jobs until someone closes it.

The supervisor sees what was due, done and missed, and can record the reason a check was missed. Each day the supervisor reviews the totals and photos, adds a note and approves the daily report, which goes to nominated management or client contacts the next morning: what was reported, what was completed, what is still open and how scheduled checks went. It is priced per building, with no per-person fees.

07

Questions people ask

What is a guard tour system?

A way of recording that a security guard reached each checkpoint on a patrol, and when, using a tag, button or code at each point and a reader or phone the guard carries. The output is a patrol log showing which checkpoints were visited, in what order, and which were missed.

What is the best QR code scanner for security guards?

For most guard tour software, the scanner is the phone's own camera or the vendor's app, so the question is really which system, not which scanner. What matters is that the codes are fixed where they can only be scanned by being there, and that each scan records the guard and the time.

Dedicated scanners and wands still make sense where phones are not allowed or cannot cope with the conditions.

How much does a guard tour system cost?

Pricing varies widely by type. Wand systems carry an up-front hardware cost for readers, buttons and docks; app-based systems usually charge a subscription per device, per guard or per site. Compare the cost over the length of the contract, including tags, replacements and the supervisor time spent compiling reports, not just the first invoice.

Does a guard tour system replace supervision?

No. It shows that checkpoints were reached. Whether the patrol was done well still depends on the post orders, the checks attached to each point and a supervisor who reads the data and visits unannounced.

08

Further reading, and a list to take away

Your state's security guard licensing authority sets registration and training requirements for guards; in California that is the Bureau of Security and Investigative Services. OSHA publishes the text of the OSH Act, including the General Duty Clause, and its workplace violence page, which notes there is currently no specific federal OSHA standard for workplace violence. For fire watch, start with your local fire marshal's office and the International Fire Code as adopted where you are.

Before choosing or changing a guard tour system, check that:

• the patrol routes, checkpoints and times are written in the post orders;
• checkpoints are at the places that matter, and can only be scanned by being there;
• the system works where there is no signal;
• missed checkpoints are obvious to the supervisor the same day;
• maintenance issues found on patrol reach someone who will fix them;
• lone-worker protection, if you need it, is assessed and provided separately;
• any location tracking is lawful where you operate, proportionate and explained to guards;
• the client gets a report they will actually read.
