Sprinkler head clearance: keeping storage 18 inches below the sprinklers

01

The rule: OSHA, the fire code and NFPA 13

Sprinkler head clearance is the vertical space between the deflector, the small plate on the sprinkler head that breaks the water into a spray, and the top of anything stored below it. The figure most people know is 18 inches (457 mm), and it appears in more than one rulebook.

The federal rule is in OSHA's standard 29 CFR 1910.159, Automatic sprinkler systems. Section 1910.159(c)(10) says: "The minimum vertical clearance between sprinklers and material below shall be 18 inches (45.7 cm)." Its reach is narrower than many people assume. Under 1910.159(a)(1), the section applies "to all automatic sprinkler systems installed to meet a particular OSHA standard." Most building sprinkler systems were required by the building and fire codes rather than by OSHA, so for them the clearance comes from the fire code.

Fire codes are adopted locally. A state, county or city adopts the International Fire Code or NFPA 1, often with its own amendments, and the fire marshal or fire code official who enforces it is the authority having jurisdiction (AHJ). New York City shows what the rule looks like once adopted. In the New York City Fire Code (2022), Chapter 3, General Precautions Against Fire, FC 315.2.1 says: "Storage shall be maintained 2 feet (610 mm) or more below the ceiling in areas of buildings not protected by a sprinkler system, or a minimum of 18 inches (457 mm) below sprinkler head deflectors in areas protected by a sprinkler system", with a proviso that the department may authorize storage of noncombustible materials to the ceiling within 30 inches of a fire partition. The same chapter says, at FC 314.5, that "Sprinklers and fire alarm systems shall not be obstructed by indoor displays." The International Fire Code, on which the New York City code is based, has its own ceiling-clearance section in Chapter 3 (315.3.1 in the 2021 International Fire Code, Chapter 3, General Requirements); read the edition and amendments your jurisdiction adopted.

Behind both sits the installation standard, NFPA 13, Standard for the Installation of Sprinkler Systems, whose current edition is 2025. NFPA 13 is how a system is designed: which sprinklers go where, how far apart, and what clearance and obstruction rules apply to each type. The clearance a particular system needs comes from that design. A warehouse system designed for high-piled storage, for example, may have been designed around a figure other than 18 inches, so ask the sprinkler contractor for the number that applies in each area rather than assuming.

02

Where sprinkler clearance goes wrong in ordinary buildings

Clearance is rarely lost in one decision. It creeps: a delivery with nowhere to go, a top shelf that is empty until it is not. The places to look:

• Stock rooms and back rooms in retail, where cartons are stacked to the ceiling before a sale or a seasonal change.
• File rooms and records storage, where archive boxes go on top of the shelving units.
• Custodial closets and supply rooms, where cases of paper towels and restroom supplies are stacked high because the room is small.
• Mailrooms, loading docks and IT closets, where parcels, pallets and empty equipment boxes wait for someone to move them.
• Mechanical, boiler and electrical rooms, which fill with whatever has no other home. In New York City, FC 315.2.3 says: "Combustible material shall not be stored in boiler rooms, mechanical rooms or electrical equipment rooms." Check what your own code says about equipment rooms.
• Classrooms, church halls and community rooms, where decorations, costumes and equipment go on top of cabinets.
• Warehouses and distribution space, where rack heights and pallet loads change with the stock.

Storage is not the only way a sprinkler loses its reach. NFPA's guidance for building owners lists building revisions such as relocated walls, added mezzanines, and ceilings added below sprinklers, and changes to the storage method, arrangement, height, or commodities, among the changes that call for the system to be evaluated. A new partition, a raised display, a canopy over a reception desk or a piece of equipment moved under a head can all block the spray pattern as surely as a stack of boxes.

Some things are simply wrong wherever they are found: anything hung from sprinkler piping or heads, such as decorations, signs or cables; a head that has been painted, taped over or bagged during decorating; and a head that is bent, leaking or knocked by a forklift or a ladder. These are not for building staff to fix. Report them to whoever manages the sprinkler contract.

03

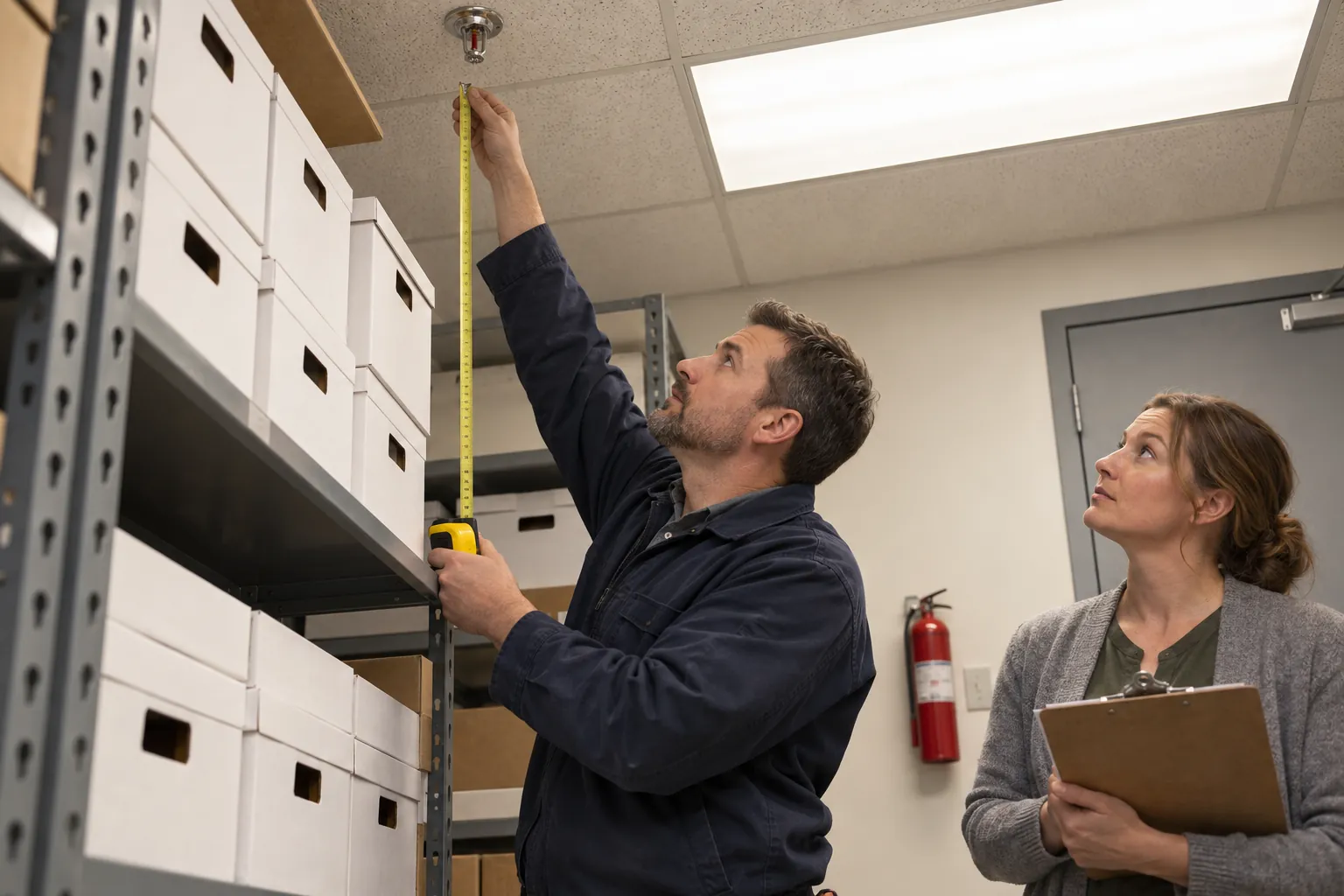

How to measure and mark the clearance

Measure from the deflector, not from the ceiling. In a room with a drop ceiling the deflector may sit only an inch or two below the tiles; under an open deck or exposed joists it may hang well below the structure. The gap that counts is from the deflector straight down to the highest point of whatever is stored beneath it.

1. Find the figure for each area. Eighteen inches is the common number, but confirm it with your sprinkler contractor or fire protection engineer for storage rooms, warehouses and anywhere the system was designed for storage. Write the figure down, by room.
2. Find the lowest deflector. In a room with more than one head, and especially under a sloped roof, soffit or beam, the lowest head sets the line for the storage near it.
3. Mark the line. A painted line or a band of colored tape on the wall or on the racking uprights at the maximum storage height makes the rule visible to anyone stacking boxes.
4. Fix the shelving to suit. If the top shelf of a unit is inside the clearance zone, remove it or lower it. A shelf that is there will be used.
5. Check with a tape measure, not by eye. Eighteen inches is hard to judge looking up from the floor.

Exceptions exist, but they belong to the code and the AHJ, not to the person stacking the boxes. The New York City proviso for noncombustible storage near a fire partition needs the department's authorization, and NFPA 13 has its own rules for particular sprinklers and arrangements. If you believe an exception applies to a room, get it confirmed in writing by the contractor or the fire marshal and keep that confirmation with your fire safety records.

04

Who keeps the clearance: owner, tenants, staff and contractor

NFPA puts the overall duty in one place. In its guidance on the responsibilities of the building owner for fire sprinkler system inspection, testing, and maintenance, it says that "the ultimate responsibility for ITM falls on the building owner", and that a designated representative "can include the occupant, management firm, or managing individual through specific provisions in the lease, written use agreement, or management contract." The same guidance says the owner must provide ready access to system components, a requirement "intended to address the all-too-common practice of placing objects – such as file cabinets or stock – in front of sprinkler risers and other control equipment."

In practice the work divides like this:

• The owner or property manager sets the rule for the building, writes it into leases and service contracts, makes sure storage areas have the right shelving, and evaluates changes of use, such as office space turned into storage.
• Tenants and department heads keep their own stock rooms and closets within the line, and tell the property manager before they change what they store or how high.
• The facility manager or building engineer owns the routine: which areas are checked, how often, by whom, and what happens when a problem is found.
• Custodians, day porters and security officers see storage rooms every day on their rounds and are usually the first to notice boxes creeping up. They need to know what the line means and whom to tell.
• The sprinkler contractor inspects the sprinklers as part of the NFPA 25 program. NFPA's summary of NFPA 25 and properly maintaining a sprinkler system lists sprinklers, and hangers and braces, among the annual inspection items, inspected "from floor level". Ask for obstructions found at that inspection to be listed on the report.
• The fire marshal may look at storage clearance during a routine fire inspection and can cite a violation.

The contractor looks once a year; clearance can be lost in an afternoon. The routine between visits is what keeps it.

05

A routine that keeps the clearance, and what to record

The codes state clearance as a condition to maintain at all times; they do not set a checking frequency for it. The right frequency is the one that finds creep before an inspector does. A workable pattern for most buildings:

• Weekly in the areas where storage changes fastest: stock rooms, loading docks, mailrooms, supply rooms and warehouse aisles.
• Monthly in file rooms, closets, classrooms and other areas where storage changes slowly.
• After every big delivery, seasonal changeover, move or event, when stock arrives faster than it can be put away.
• Before the annual sprinkler inspection and any fire marshal visit, so the contractor's report shows the building as it is kept, not as it was found.

A check that is worth recording says more than "OK". A useful record shows:

1. the area or room, and the date and time of the check;
2. who did it, by name;
3. the result: clearance kept, or not kept and where;
4. a photograph of the gap between the top of the storage and the deflectors, especially where it is tight;
5. what was done about a problem: moved on the spot, reported to whom, or still open;
6. anything else seen that needs the contractor, such as a painted, damaged or leaking head, or something hung from the piping.

Over a few months the records show which rooms keep losing clearance and when. A room that fails every month needs different shelving or less stock, not another reminder.

06

Where the record fails, and what SiteClara does about it

Clearance is the kind of rule everyone agrees with and nobody owns. The check is often a line on a monthly fire safety checklist, ticked from the corridor without opening the stock room door, or initialed for the whole month in one sitting. When boxes are found touching the deflectors at the annual inspection, nobody can say when they were last below the line, and the custodian who noticed them in the spring told whoever happened to be passing.

SiteClara records the checks at the location. A printed QR poster, with an optional NFC tag behind it, sits at each place a check is scheduled, such as a stock room, a mailroom or a warehouse aisle. Staff scan the code or tap the tag on their own phone, with no app to install, see the checks due there, and mark each one done or say what stopped them, such as a locked door. The time and the named person are recorded as it happens, with a photo when one is asked for, for example of the gap above the storage. A problem, such as stock above the line, something hung from a pipe or a damaged head, is reported there with a photo and goes onto the team's list of jobs until someone closes it.

The supervisor sees what is due, done and missed, and can record the reason a check was missed. A job that needs the building manager, such as a tenant who keeps overfilling a room, can be escalated to them to answer. Each day the supervisor reviews and approves a report that goes to nominated management or client contacts at 8 a.m. the next morning, showing what was reported, completed and still open, and how the scheduled checks went, for example 9 of 9 completed.

07

Questions people ask

What are the OSHA sprinkler clearance requirements?

OSHA's standard 29 CFR 1910.159, Automatic sprinkler systems says at 1910.159(c)(10) that "The minimum vertical clearance between sprinklers and material below shall be 18 inches (45.7 cm)." The same paragraph asks for "a minimum of interference to the discharge pattern by building or structural members or building contents." Under 1910.159(a)(1) the section applies only to sprinkler systems installed to meet a particular OSHA standard; for most building systems the clearance comes from the local fire code.

What is the 18-inch clearance rule for sprinkler heads?

It is the rule that storage stays at least 18 inches below the sprinkler deflectors so the spray can spread over the room. The fire code your jurisdiction adopts sets it. In the New York City Fire Code (2022), Chapter 3, General Precautions Against Fire, FC 315.2.1 requires storage "a minimum of 18 inches (457 mm) below sprinkler head deflectors in areas protected by a sprinkler system", and 2 feet below the ceiling where there are no sprinklers.

How much clearance is needed around a sprinkler head?

Below the head, 18 inches from the deflector to the top of any storage is the usual figure, though a system designed for high-piled storage may use a different one. Displays count too. The New York City Fire Code (2022), Chapter 3 says at FC 314.5 that "Sprinklers and fire alarm systems shall not be obstructed by indoor displays", and at FC 314.5.1 that the clearance between a sprinkler head deflector and the top of a kiosk, display, booth or concession stand "shall not be less than 18 inches (457 mm)." Your sprinkler contractor can confirm the figure for each area.

08

Where to read more, and a list to take away

Read 29 CFR 1910.159 if a system was installed to meet an OSHA standard, and your state's version in a State Plan state. Read your jurisdiction's fire code for the storage rule that applies to most buildings; the New York City Fire Code, Chapter 3 is a clear published example. The pages for NFPA 13 and NFPA 25 show the current editions; read the edition your AHJ enforces. NFPA's article on the building owner's responsibilities is a plain-language summary of what falls to the owner. For the wider inspection program, see our guide to fire sprinkler inspection.

Before the next inspection, check that:

• you know which fire code and edition apply, and whether any system in the building was installed to meet an OSHA standard;
• the clearance figure for each storage area is confirmed with the sprinkler contractor and written down;
• the line is marked on walls or racking in every storage area, and top shelves inside the clearance zone are removed or lowered;
• nothing is stored in boiler, mechanical or electrical rooms, and risers and valves have clear access;
• nothing hangs from sprinkler piping or heads, and no head is painted, covered or damaged;
• tenants and departments know the rule, and leases or service contracts say who keeps it;
• custodians, porters and security officers know what the line means and whom to tell;
• the fast-changing areas are checked weekly, with the date, the name and a photo;
• every problem found has a date it was fixed, or is still open with an owner;
• changes of use and new walls, ceilings or mezzanines go to the contractor to be evaluated.
